技术特性
• 分辨率：公制 0.01mm和 0.001mm可选
英制 .001"和 .0001"可选
• 平面度： 0.6m/0.000024"
• 硬质合金测量面
• 棘轮测力
• 灰色喷漆钢制尺架

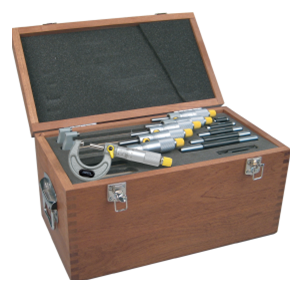

标准配置
• 扳手、校对柱（25-50mm以上规格）
• 质保卡、使用说明书、校准报告
| 英制 | 公制 | 英制 | 公制 | ||||
| 测量范围 | 分辨率 | 精度 | 测量范围 | 分辨率 | 精度 | 英制货号 | 公制货号 |
| 0-1" | .001" | ±.0001" | 0-25mm | 0.01mm | ±0.004mm | 101-01-1 | 101-01-0 |
| 1-2" | .001" | ±.0002" | 25-50mm | 0.01mm | ±0.004mm | 101-02-1 | 101-02-0 |
| 2-3" | .001" | ±.0002" | 50-75mm | 0.01mm | ±0.005mm | 101-03-1 | 101-03-0 |
| 3-4" | .001" | ±.0002" | 75-100mm | 0.01mm | ±0.005mm | 101-04-1 | 101-04-0 |
| 4-5" | .001" | ±.0002" | 100-125mm | 0.01mm | ±0.006mm | 101-05-1 | 101-05-0 |
| 5-6" | .001" | ±.0002" | 125-150mm | 0.01mm | ±0.006mm | 101-06-1 | 101-06-0 |
| 6-7" | .001" | ±.0002" | 150-175mm | 0.01mm | ±0.007mm | 101-07-1 | 101-07-0 |
| 7-8" | .001" | ±.0002" | 175-200mm | 0.01mm | ±0.007mm | 101-08-1 | 101-08-0 |
| 8-9" | .001" | ±.0002" | 200-225mm | 0.01mm | ±0.008mm | 101-09-1 | 101-09-0 |
| 9-10" | .001" | ±.0003" | 225-250mm | 0.01mm | ±0.008mm | 101-10-1 | 101-10-0 |
| 10-11" | .001" | ±.0003" | 250-275m | 0.01mm | ±0.009mm | 101-11-1 | 101-11-0 |
| 11-12" | .001" | ±.0003" | 275-300m | 0.01mm | ±0.009mm | 101-12-1 | 101-12-0 |
| 0-1" | .0001" | ±.0001" | 0-25mm | 0.001mm | ±0.004mm | 101-01-3 | 101-01-2 |
| 1-2" | .0001" | ±.0002" | 25-50mm | 0.001mm | ±0.004mm | 101-02-3 | 101-02-2 |
| 2-3" | .0001" | ±.0002" | 50-75mm | 0.001mm | ±0.005mm | 101-03-3 | 101-03-2 |
| 3-4" | .0001" | ±.0002" | 75-100mm | 0.001mm | ±0.005mm | 101-04-3 | 101-04-2 |
| 4-5" | .0001" | ±.0002" | 100-125mm | 0.001mm | ±0.006mm | 101-05-3 | 101-05-2 |
| 5-6" | .0001" | ±.0002" | 125-150mm | 0.001mm | ±0.006mm | 101-06-3 | 101-06-2 |
| 6-7" | .0001" | ±.0002" | 150-175mm | 0.001mm | ±0.007mm | 101-07-3 | 101-07-2 |
| 7-8" | .0001" | ±.0002" | 175-200mm | 0.001mm | ±0.007mm | 101-08-3 | 101-08-2 |
| 8-9" | .0001" | ±.0002" | 200-225mm | 0.001mm | ±0.008mm | 101-09-3 | 101-09-2 |
| 9-10" | .0001" | ±.0003" | 225-250mm | 0.001mm | ±0.008mm | 101-10-3 | 101-10-2 |
| 10-11" | .0001" | ±.0003" | 250-275mm | 0.001mm | ±0.009mm | 101-11-3 | 101-11-2 |
| 11-12" | .0001" | ±.0003" | 275-300mm | 0.001mm | ±0.009mm | 101-12-3 | 101-12-2 |
| 测量范围 | 精度 | 测量范围 | 精度 | 英制货号 | 公制货号 |
| 0-3" | .001" | 0-75mm | 0.01mm | 101-63-9 | 101-63-8 |
| 0-4" | .001" | 0-100mm | 0.01mm | 101-64-9 | 101-64-8* |
| 0-6" | .001" | 0-150mm | 0.01mm | 101-66-9 | 101-66-8* |
| 0-12" | .001" | 0-300mm | 0.01mm | 101-72-9 | 101-72-8* |
| 6-12" | .001" | 50-300mm | 0.01mm | 101-82-9 | 101-82-8 |
| 0-3" | .0001" | 0-75mm | 0.001mm | 101-63-7 | 101-63-6 |
| 0-4" | .0001" | 0-100mm | 0.001mm | 101-64-7 | 101-64-6 |
| 0-6" | .0001" | 0-150mm | 0.001mm | 101-66-7 | 101-66-6 |
| 0-12 | .0001" | 0-300mm | 0.001mm | 101-72-7 | 101-72-6 |
| 6-12 | .0001" | 0-300mm | 0.001mm | 101-82-7 | 101-82-6 |
